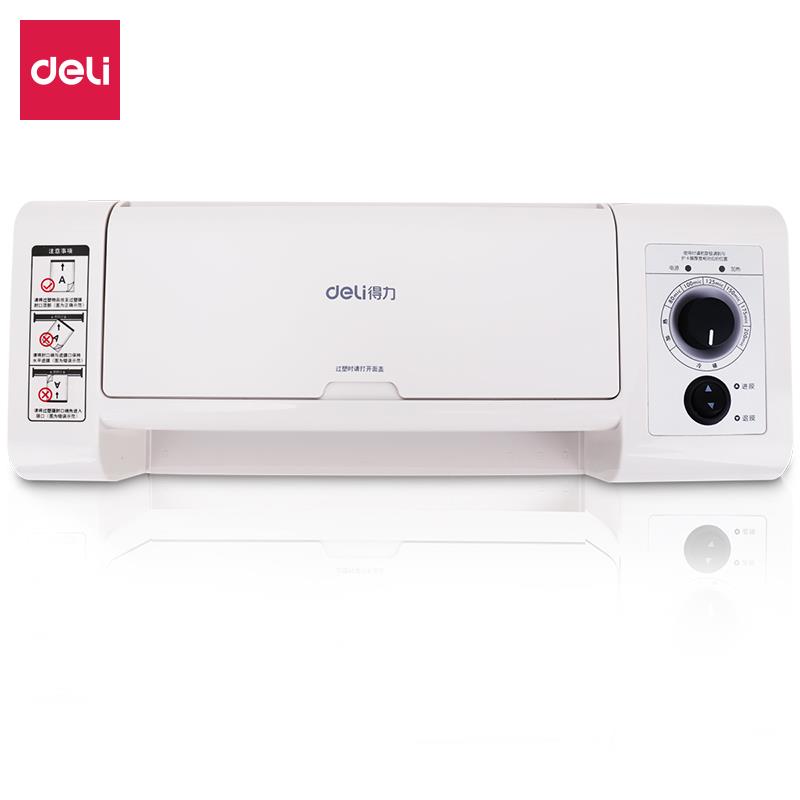

Product Details:
- Laminator Size: A4 (230 mm)
- Compatible Sizes: A4 (220 mm), A5 (159 mm), B5 (193 mm) and lesser sizes
- Laminating Thickness: 80 to 200 Microns

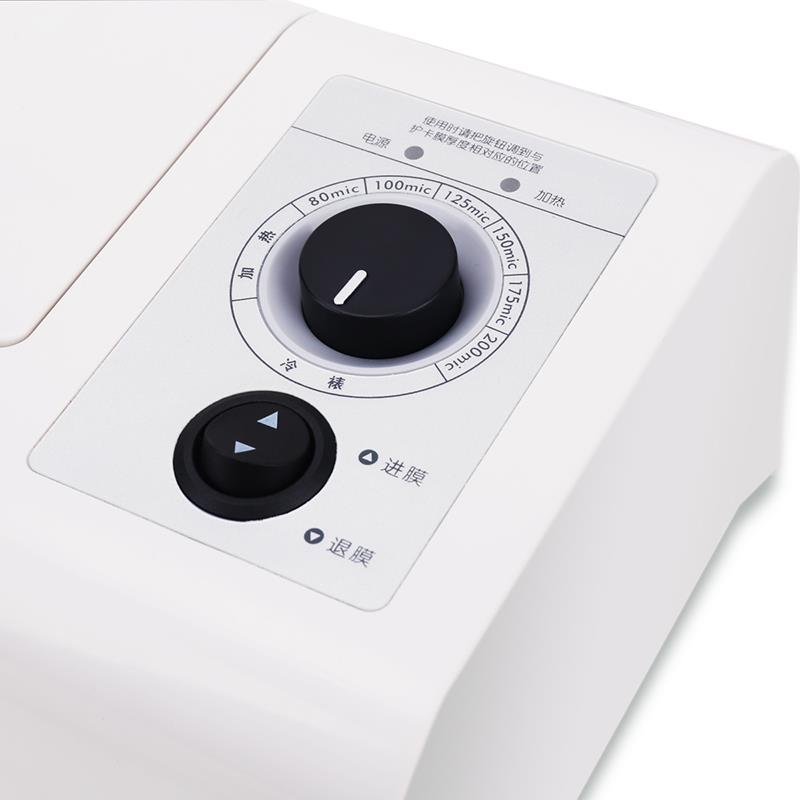

- Adjustable temperature knob with levels from 80 microns, 100 microns, 125 microns, 150 microns, 175 microns, 200 microns
- Maximum Laminating Thickness: 0.6 mm film
- Laminating Speed: 300 mm/minute
- Heat & Cold laminating system
- Material: Made of ABS Shell Material
- 3 to 5 minutes warm-up to ready for lamination
- Forward/Reverse Function
- Work status indicator
- Power indicator
- Heating indicator
- Available Colour: Light Grey
- Product Dimensions: 14.78 x 5.70 x 4.05 Inches / 373 x 145 x 103 mm
- Power: 310 Watts
- Voltage: 220-240 VAC 50 Hz
- Temperature Range: 85 °C to 145 °C (Degree Centigrade)
- Noise: Less than 55 dB
