For further detailed User Manual and Images of this product, please refer to the User Manual, Technical Specifications and Images files attached in the "Download Product Details" Section.

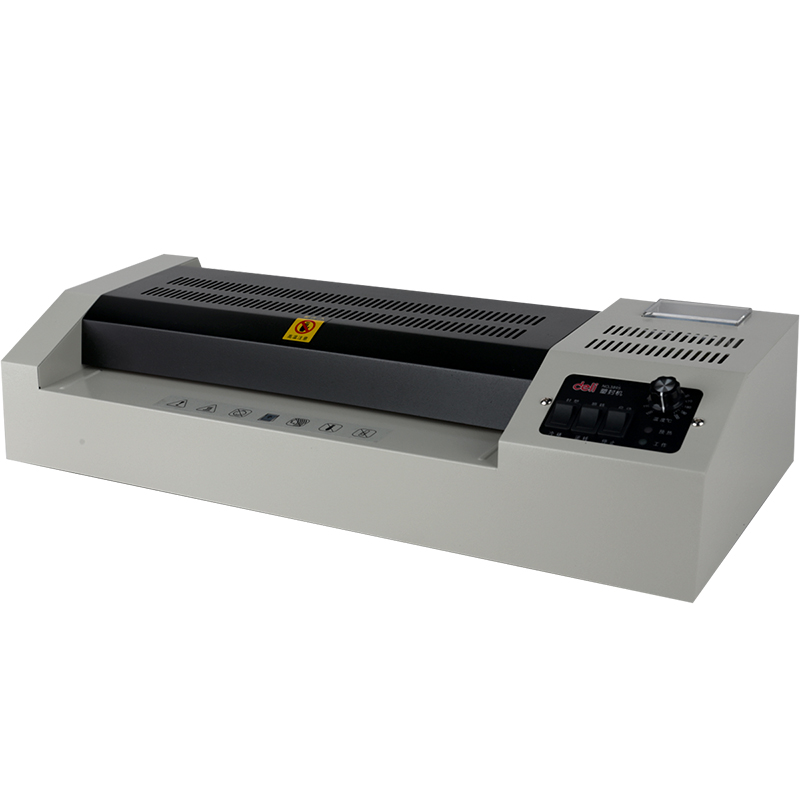

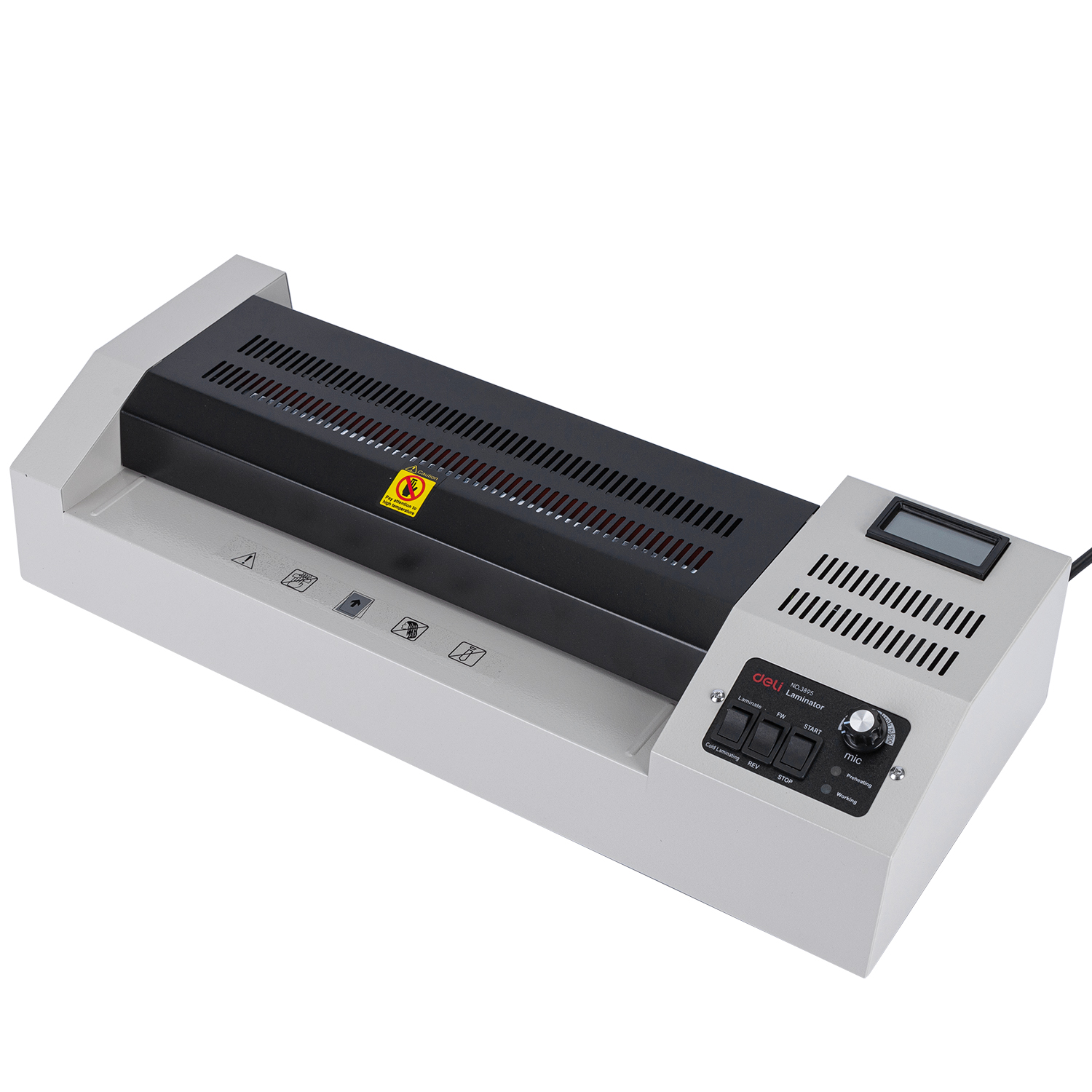

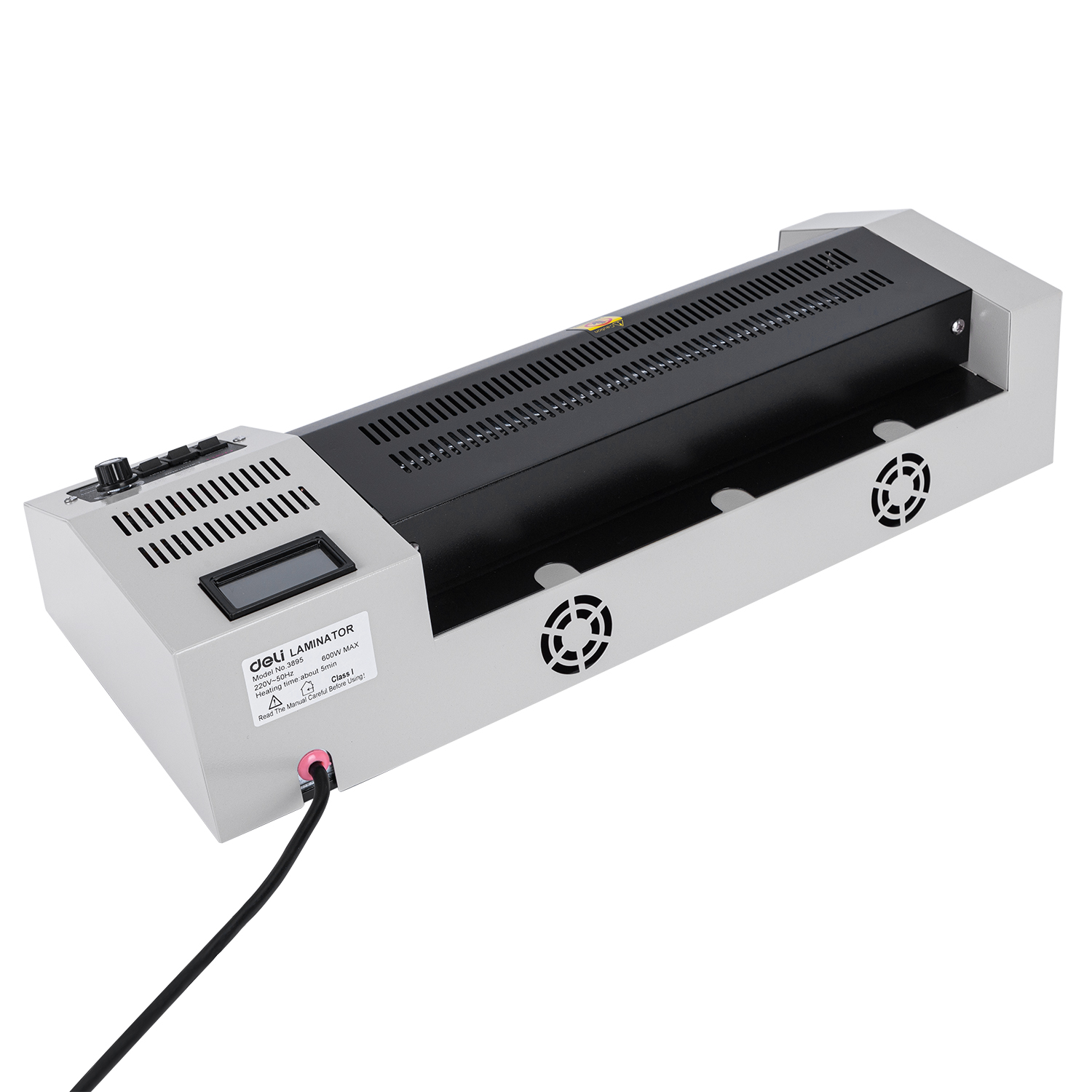

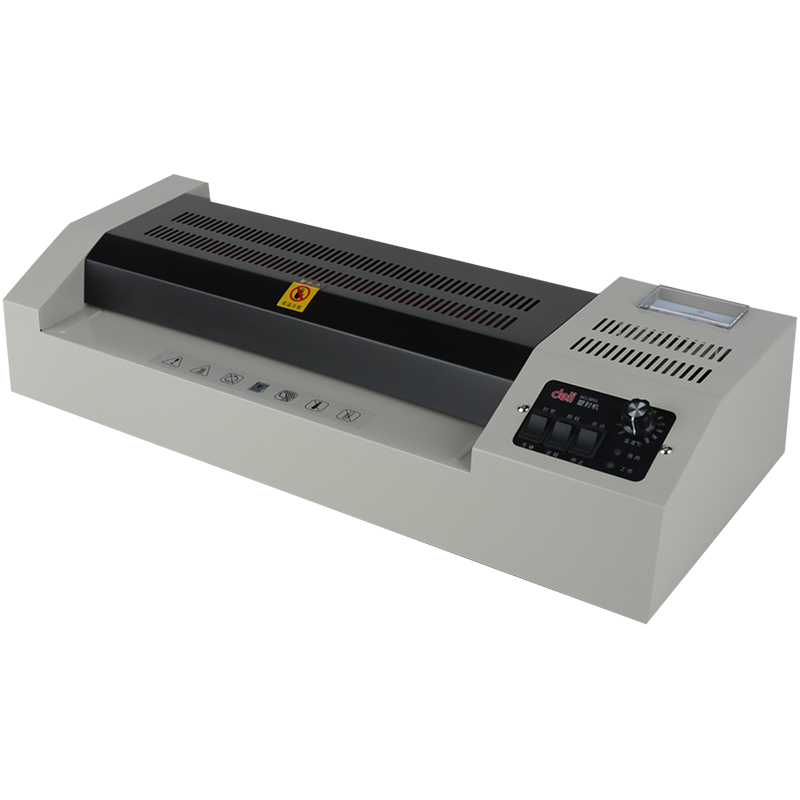

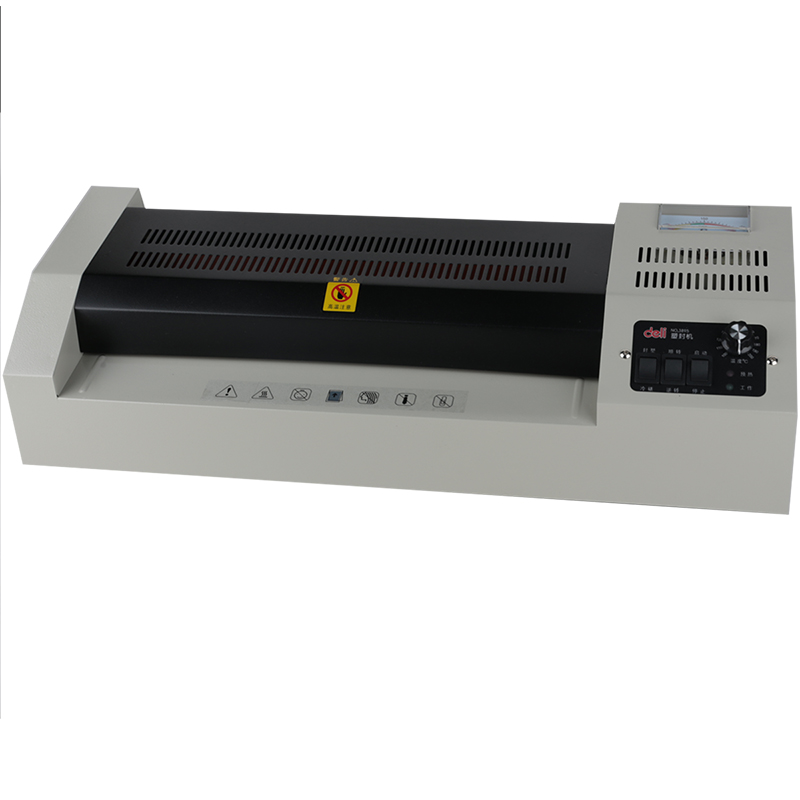

Product Details:
- Laminator Size: A3 (320 mm)
- Compatible Sizes: A3 (320 mm), B4 (250 mm), A4 (220 mm), A5 (159 mm), B5 (193 mm) and lesser sizes
- Laminating Thickness: 50 to 200 Microns
- Adjustable temperature knob with levels from 50 microns, 80 microns, 100 microns, 125 microns, 150 microns, 175 microns, 200 microns and 250 microns
- Maximum Laminating Thickness: 1.0 mm film
- Laminating Speed: 600 mm/minute
- Heat & Cold laminating system
- Material: Made of Steel Shell Material
- 3 to 5 minutes warm-up to ready for lamination
- Forward/Reverse Function
- Work status indicator
- Power indicator
- Heating indicator
- Available Colour: Light Grey
- Product Dimensions: 19.68 x 7.87 x 4.33 Inches / 500 x 200 x 110 mm
- Power: 600 Watts
- Voltage: 220-240 VAC 50 Hz
- Current Consumption: Less than 3 Amperes
- Temperature Range: 85 °C to 155 °C (Degree Centigrade)
- Noise: Less than 60 dB
